Interchangeable Punching Options

Upright Side Holes are Optional

UNARCO’s Interchangeable pallet racking can be punched to meet your requirements. Square side holes, 2” on center can be added to bolt on beams or row spacers and add any number of interchangeable pallet racking accessories to assist with warehouse storage.

UNARCO’s versatile L-Rail system and Vertical Post Dividers intermediate shelves can be added to these side holes, creating additional shelves within a bay for cartons or piece product in warehouse storage or a retail store environment.

UPICK punching is also available to snap Carton Flow shelves into your Interchangeable pallet racking system, eliminating the need for drilling. These slotted holes are on 1-1/2” vertical centers accept shelf clips which easily attach side members and require no tools or drilling. UPICK uprights for interchangeable pallet racking with slotted side holes allow Carton Flow rack shelves to be moved as quickly as your product and warehouse storage needs change.

Side-hole punching options are available in both the open-section upright or the SuperPost closed-tube interchangeable pallet racking uprights. Attaching pallet rack accessories with a closed tube post can be difficult because you cannot reach inside the pallet rack upright. With side punching, these accessories and pallet rack add-ons can be designed to bolt through side holes.

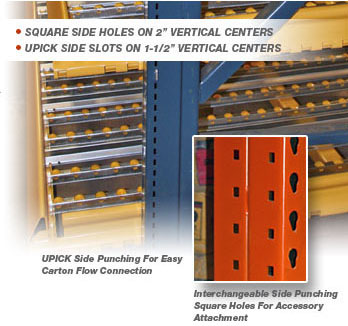

UNARCO Interchangeable pallet racking uprights can be punched with holes on 2″ vertical centers for attaching durability add-ons or accessories or the UPICK slotted side punching for ease of installing Carton Flow rack shelves.
UNARCO Interchangeable pallet racking uprights can be punched with holes on 2″ vertical centers for attaching durability add-ons or accessories or the UPICK slotted side punching for ease of installing Carton Flow rack shelves.

System Highlights:

Interchangeable Rack Side Punching options are part of the upright manufacturing process.

  • Closed-Tube and open section uprights with side punching options

  • Special UPICK Carton Flow shelf punching available on both open column and SuperPost uprights

  • Uprights with no side punching will have slightly higher capacities

  • Accessories and add-on items can easily attach in side holes

  • Side punching is in adherence with universal 2" vertical centers for interchangeable racking

Row spacers, backstop beams, and many other accessories fasten easily in the square side holes in interchangeable upright posts. A 3/8" or 1/2" down-aisle through bolt can add extra protection from uplift when placed through the side holes in uprights. There are many uses for the side holes in uprights, including the addition of intermediate shelves in a Versa-rack or Vertical Post Divider assembly which will section off a bay to more useful space for non-palletized loads.

For more photos of AS/RS systems, view the UNARCO Pallet Rack Photo Gallery.

Automatic Beam Locking Connectors

The same beam locking devices and beam profiles available for all Interchangeable pallet racking options will work with uprights with side punching. UNARCO offers a wide variety of connectors in both bolted and automatic locking devices which will work with Interchangeable racks.

Only Interchangeable pallet racking uprights are available with 2″ on the center punching for attaching accessories and durability add-ons. View UNARCO capacity charts to compare the pallet racking upright capacities available.

For more photos of Interchangeable Pallet Racking, view the UNARCO Pallet Rack Photo Gallery.
