Cantilever Rack Specifications

Cantilever Rack - Flexible Design

UNARCO Cantilever Rack provides a wide selection of cantilever column heights up to 48 feet. Columns are constructed from high-strength steel.  Cantilever Rack is designed for single- and double-sided column use and columns are pre-punched on both sides for conversion from single-sided to double-sided layouts. UNARCO Cantilever Rack is perfect for furniture storage, lumber storage, carpet storage, pipe storage, and other long length products.

  • Vertical Load Clearance

    Tapered cantilever arms are designed to compensate for deflection and are available up to 100″ in length.

  • Double Capacity

    Cantilever Rack columns are pre-punched on both sides for conversion from a single-sided Cantilever Rack unit to a double-sided unit.

  • Load Compensation

    Tapered Cantilever Rack columns compensate for column deflection even at 48 feet.

  • Adaptability

    Cantilever rack arms can be easily adjusted in 3 inch increments along the height of the cantilever columns facilitating easily height adjustments.  UNARCO’s patented Key-Wedge Pin Connector secures the arms to hold loads.

  • Boltless Connection

    UNARCO Cantilever Rack column is fully welded to provide a rigid, stable base connection.

    .

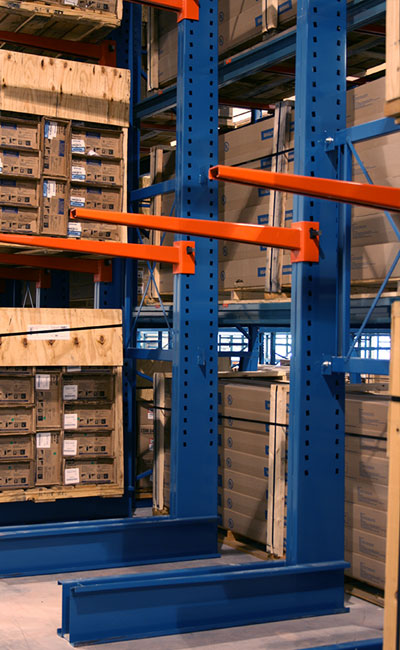

Cantilever-Tower-With-Arms

System Highlights:

Single-Sided or Double-Sided Cantilever is the perfect application for hard-to-store items of long-lengths or awkward design.

  • Lumber and Plywood

  • Steel and Extrusions

  • Furniture

  • Appliances

  • Pipe and Conduit

  • Building Materials

Cantilever Racks are designed to hold any size load. Let UNARCO design a system with the proper arm length and size to meet your storage needs. Arms are adjustable in 3″ increments to allow maximum flexibility. Each Cantilever Rack system can be designed and configured to be single- or double-sided to fit your warehouse space.

For more photos of Cantilever Rack, view the UNARCO Cantilever Rack Photo Gallery.

Store Product on Both Sides for Maximum Density

UNARCO’s Cantilever Rack is both versatile and durable. The welded one-piece column and base makes assembly a snap. Cantilever arms are locked into the column before the entire system is lifted into the up position and installed in its storage location.

Additional accessories for pipe storage or lumber storage include pipe trays and lumber poles to hold product on cantilever arms. For furniture storage, decking and brackets can be added for a secure furniture platform. UNARCO also manufactures cantilever guide rail systems for narrow aisle operation. Whatever your Cantilever Rack storage need, UNARCO can design a perfect shelving storage idea to improve your productivity and warehouse efficiency.

Click for Cantilever Installation Instructions.
