UPICK KNOCK DOWN CARTON FLOW RACK SYSTEM

UNARCO’s UPICK carton flow rack system is a knock-down carton flow system that installs easily on site and ships very efficiently.  Because of individual component shipments, there is less damage in transit and shipping costs are greatly reduced.

The UPICK carton flow rack  system is very versatile and shelves adjust in 1½” increments.  This flexibility allows you to reconfigure your system as SKU sizes change or are added and deleted.

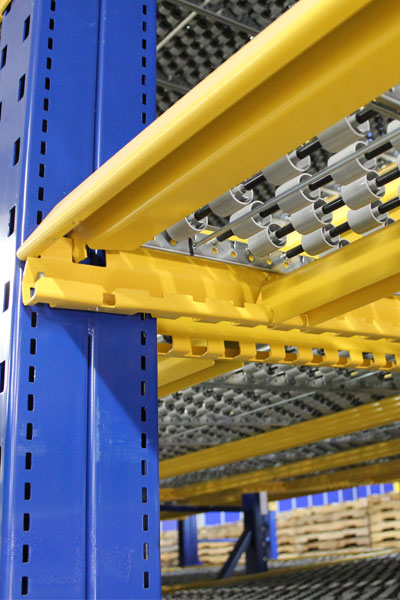

Parts are manufactured to snap together with little to no hardware.  The UPICK shelf clip inserts into the side of the post to support the carton flow rack shelf assembly.  For existing systems without UPICK side punching, a “W” strip can be added to the upright for securing the side members and shelves.

Shelf side members are interchangeable with no left or right.  Front and rear members are also not specific for ease of installation.  Once front, rear and side members are snapped together, UPICK carton flow rack is ready to roll.  For additional durability at drop areas, UNARCO manufactures an impact deck that ships installed on the load side carton flow lanes.

For smooth product roll UNARCO offers Dura-Flo D2 individual tracks or RhinoDeck full-width roller conveyor units.  If you prefer a welded shelf assembly UNARCO also manufactures KPICK (Kingway Carton Flow Rack) welded design.

With carton flow rack there is no chance of failing electrical parts because it is gravity powered; loads flow automatically on sloped shelves to the pick position.  As one carton is removed, another flows forward to the front to fill the empty space.  The separation of a pick aisle and a loading aisle is beneficial to warehouse efficiency.  To help order picking accuracy, UNARCO manufactures Tilt Trays to angle the product towards the picker for better visibility.

UPICK Carton Flow Rack ships more compact with less damage to save you money. On-site interchangeable shelf members are assembled with only a shelf clip and no tools.
UPICK Carton Flow Rack ships more compact with less damage to save you money. On-site interchangeable shelf members are assembled with only a shelf clip and no tools.

System Highlights:

UPICK Knock-Down Carton Flow Shelves save shipping costs because of packability of individual component parts.

  • Shelving clip system inserts into upright side holes

  • Specially-made shelf clips are available to connect UPICK carton flow shelves to side holes of interchangeable racking

  • Front and rear members are interchangeable for easy installation

  • Side rails snap into front members for easy assembly

  • Adjustable on 2" centers

The versatile UPICK system breaks down into standardized components and ships on fewer trucks to save freight costs.  On the jobsite parts snap together to form a shelf and hang on adjustable clips in the side punching of pallet rack uprights.

For more photos of Carton Flow systems view UNARCO Carton Flow Photo Gallery.

UPICK Carton Flow Shelves for Pick Modules

Single level systems can be engineered to effectively separate fast moving and slow moving stock units.  Multi-level carton flow rack systems can be used to maximize floor space as it is often more sensible to expand vertically.   Utilize  UNARCO’s years of engineering experience, elevated work platforms can be created by installing support beams, catwalk bars, deck surfaces, stairways and hand railings to form complete working pick modules.

For more photos of UPICK carton flow rack view UNARCO Carton Flow Photo Gallery.
