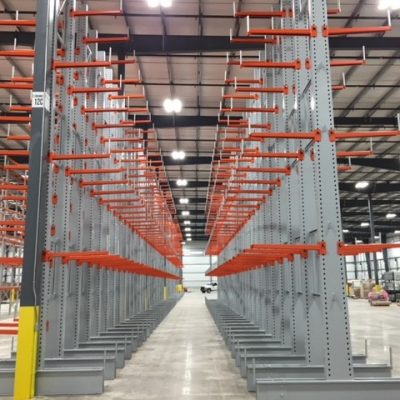

Cantilever Rack Aisle in Warehoues

Cantilever Rack Specs

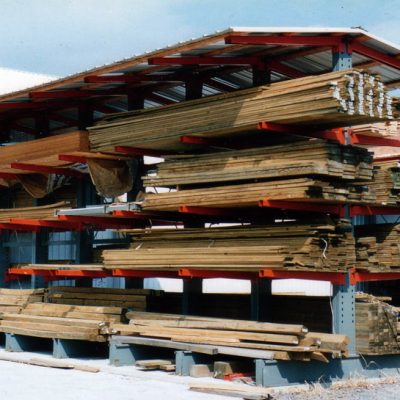

Cantilever Covered Lumber Storage

Lumber Rack Cantilever

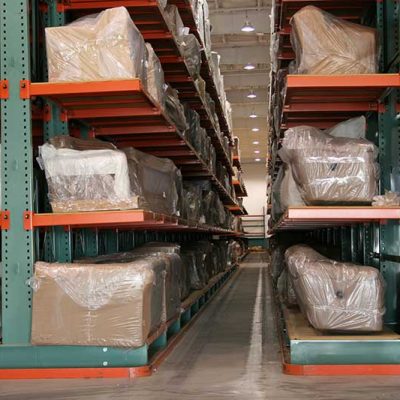

Furniture Cantilever Side View

Furniture Rack Cantilever

Cantilever-Rack-Arms-TB4

Cantilever Rack Photos

Storage For Lumber, Tube, Pipe, and More

The UNARCO Cantilever Rack system is designed to manage loads of varying length and proportion without any interference.  The Cantilever Rack  solution makes product completely accessible from the front without any of the horizontal restrictions of traditional pallet rack.  The entire length of the cantilever rack may be used for storage.  For added flexibility, loads of differing lengths may be stored on the same cantilever rack and even at the same level.

Store any length product on UNARCO Cantilever Rack by moving arms and columns or easily converting a single-sided cantilever rack to a double-sided cantilever racking system. Cantilever rack is the ideal solution for long or heavy items such as pipe storage, tubing storage or lumber storage.  Furniture rack, carpet rack or lumber rack  perfectly store long products and allow product to be removed without damage due to excessive maneuvering around vertical or horizontal obstructions.

UNARCO’s welded one-piece column and cantilever base makes assembly a snap.  Tapered cantilever arms are locked into the column in the down position before the entire system is lifted into the up position and installed in its storage location.

Cantilever rack is designed for single and double sided column use.  Cantilever Rack columns are pre-punched on both sides for conversion from single-sided to double-sided cantilever layouts in case your warehouse storage needs change.

Since vertical supports are at the rear of the system, full-length product is easily loaded with no obstructions.  Cantilever arms are available in a wide variety of sizes to handle any load no matter how awkward or bulky.  Arms can also be easily reconfigured as loads or storage locations change.  In addition, cantilever racking is easy to add onto as new products arrive.

Click for Cantilever Installation Instructions.



Positive Locking Arms

Positive locking cantilever arms move only when adjustments are made.  As product needs dictate, cantilever arms are easily adjustable and cantilever rack may be switched between single sided or double sided cantilever.

Slotted Cantilever Design Base

The unique slotted base design on the cantilever rack minimizes the aisle width to the truck’s width, enabling the rail guide to be inside the rack’s perimeter. While pulling orders, operators rely on this rail-to-rail configuration to guide the vehicle through narrow aisles quickly.

This design accommodates the installation of more cantilever rack per square foot than other competitive cantilever rack designs.

Premium Cantilever Rack

Let UNARCO design custom accessories to support your specific needs.

Cantilever can be ordered with optional material trays that can help with bar storage, cylindrical stock storage or even cut stock storage.

  • Solid one-piece cantilever column design

  • Completely welded cantilever base construction

  • Wedge-type connectors, secure the cantilever arms in place

  • Free standing upright cantilever columns up to 48′. No need to top tie which restricts maneuvering of furniture on upper locations

  • Heavy gauge cantilever arms securely hold the loads

  • Cantilever base guide rails make for quick and easy operation of order picker

System Highlights:

Key-wedge Pin Connectors  have an unique design that makes assembly easy and reliable for many years of service.

  • Superior to racks that use conventional bolts and nuts.

  • In strength comparisons for shear strength, one UNARCO Cantilever pin is equivalent to five 5/8 inch bolts

  • One pin replaces up to four bolts, washers, and nuts used in competitors’ cantilever rack systems

  • The Key-Wedge pin does not move on the column from the impact of loading and unloading

  • Arms are adjustable in 3″ increments

Create warehouse efficiency and lower costs by making loading and unloading easy with no vertical obstructions for forklift drivers.  Adjustable openings create ease of use for all applications.
