M-Dividers

Retail M-Divider Solution

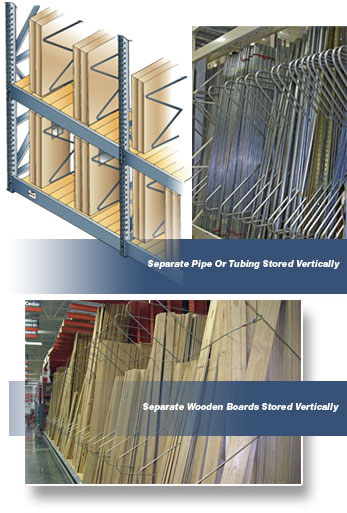

M-dividers help keep impossible SKUs organized. Bulky products such as windows, doors, or lengthy items can be kept in a bay using pallet rack M-Dividers. Several M-divider sizes are available for any product need. M-dividers are made of 3/8″ wire or 1″ tubing, formed in the shape of an “M,” and are used to keep vertical product from falling over. M-dividers also can handle doors and windows, which can be separated and stored by SKU, and pipe and conduit can be placed in vertical storage using M-dividers, thanks to the racking system’s depth.

M-Dividers have two or three brackets, depending on the height ordered, which attach to rear beams and extend the M-dividers outward toward the front of the bay. The front edges are rounded and leave no sharp edges extending into the aisles for added retail safety. Orders can be placed for M-dividers that will accommodate bays of any depth. It should be noted that measurements when ordering M-dividers should begin from the face of the bracket, and sizes should be ordered with a depth less than the upright so that the M-dividers do not protrude into the aisle. For example, if the upright depth is 42″, the most common practice would be to use a 36″ M-divider.

M-dividers are formed with 3/8″ wire for products such as millwork, i.e., tall, but lightweight. For heavier items, 1″ tubing provides a strong side support for retail product division. In special circumstances involving extremely bulky SKUs, 2″ wire can be formed for a heavy-duty M-divider solution.

Typical sizes for M-Dividers are 36” wide x 36” deep x 1" in diameter for doors and windows. Lumber, molding, conduit, etc., can be separated with a taller 36" d x 72" high rod or tube, depending on the size of the pipe or wood.

M-Dividers are available in 3/8″ wire or 1″ tube to meet any product storage requirement.
M-Dividers are available in 3/8″ wire or 1″ tube to meet any product storage requirement.

System Highlights:

Retail M-Dividers are the perfect solution to separate product and maintain SKU organization for many hard-to-store items, including:

  • Lumber, boards, and wood molding storage

  • Pipe and conduit

  • Windows and doors

  • Fencing posts and rolls

  • ABS drain pipe and corrugated pipe rolls

M-Divider retail solutions not only keep product organized, but also help protect against product damage. By separating items inside the bay and storing them vertically, less corner and side damage occur. UNARCO offers M-Dividers in many different sizes for everything that you are trying to store in warehouses and retail environments.

More photos of Retail Racks can be viewed in the UNARCO Retail Rack Photo Gallery.

Storage Ideas to Keep Product Separated

M-Dividers allow product to be stored vertically to help maximize retail rack bay space and increase layout efficiency. UNARCO offers other options for vertical separation within a retail rack bay, including V-DividersTool Holders , and Vertical Post Dividers.

For more information on M-dividers and other retail rack accessories, view the Retail Dictionary and Retail Product Photo Gallery.
